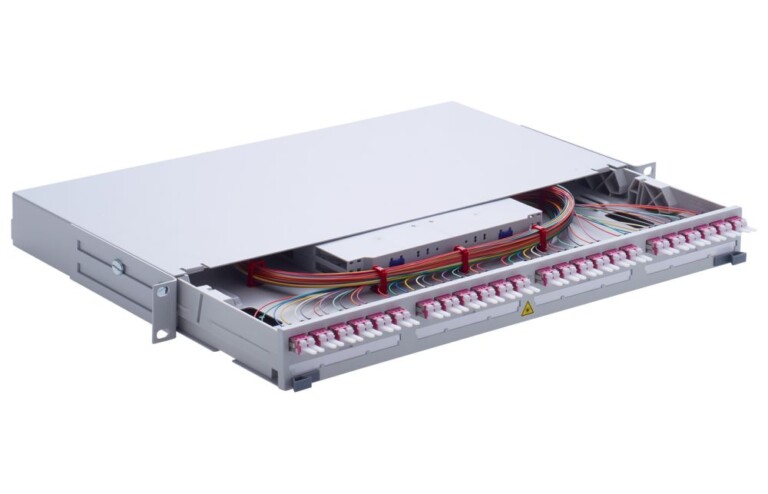

Name: 19" 1U UniRack2 24xLC-Duplex OM4, PC, ceramic, Bm/3, R&MinteliPhy ready (R819023) - Synge Inc.
SKU: R819023
Price: 2206.29 CAD
Availability: InStock

Fiber type	Multimode (MM)
Conductor type FO	semi-tight buffer, dry
Fiber class	OM4
Fiber diameter	G50 / 125 µm
Number of connectors (A)	24
Connector type (A)	LC-Duplex
Connector color (A)	heather violet
Polishing plug (A)	PC
Protection class IP (A)	IP 20
Return loss grade RL (A)	3
Protection class IP	IP 20
Attenuation grade IL (A)	Bm
Amount of height units	1 U
Rack mounting version	patch panel
Adapter fastening method	end cap snap-in
Assembly	fully populated
Capacity (ports)	24
Sleeve material	ceramic
Version	splice
Standard	IEC 60297-3: 19-inch (482.6 mm) rack Adapter and connector in acc. with IEC 61754-20LC, LC-Duplex Pigtails in acc. with color code DIN VDE 0888
Fastening	19 "

Dimensions	43.6 mm x 482.6 mm x 225.0 mm / 1.717 in x 19 in x 8.858 in (W x H x D)
Color Code NCS	S 2502-B
Material	steel: DC01 (1.0330), 1.0 mm

19" 1U UniRack2 24xLC-Duplex OM4, PC, ceramic, Bm/3, R&MinteliPhy ready (R819023)

Installation instructions
