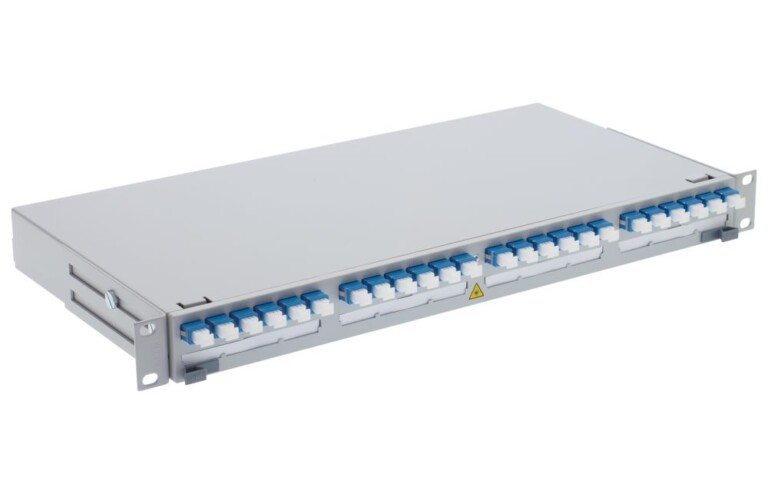

19" 1U UniRack2 24xSC-Duplex G.652.D, PC, ceramic, C/2 (R819331)
SKU: R819331
Categories: 19" Patch Panels, 19" UniRack2, Fiber Optics, Home
Mechanical Data
| Dimensions |
43.6 mm x 482.6 mm x 225.0 mm / 1.717 in x 19 in x 8.858 in (W x H x D) |
| Color Code NCS |
S 2502-B |
| Material |
steel: DC01 (1.0330), 1.0 mm |
Technical Data
| Fiber type |
Singlemode (SM) |
| Conductor type FO |
semi-tight buffer, dry |
| Fiber class |
G.657.A1 (covers G.652.D, OS1, OS2) |
| Fiber diameter |
n.a. |
| Number of connectors (A) |
24 |
| Connector type (A) |
SC-Duplex |
| Connector color (A) |
blue |
| Polishing plug (A) |
PC |
| Protection class IP (A) |
IP 20 |
| Return loss grade RL (A) |
2 |
| Protection class IP |
IP 20 |
| Attenuation grade IL (A) |
C |
| Amount of height units |
1 U |
| Rack mounting version |
patch panel |
| Adapter fastening method |
end cap snap-in |
| Assembly |
fully populated |
| Capacity (ports) |
24 |
| Sleeve material |
ceramic |
| Version |
splice |
| Standard |
IEC 60297-3: 19-inch (482.6 mm) rack Adapter and connector in acc. with IEC 61754-4 Pigtails in acc. with color code DIN VDE 0888 |
| Fastening |
19 " |
Installation instructions |
Download |
