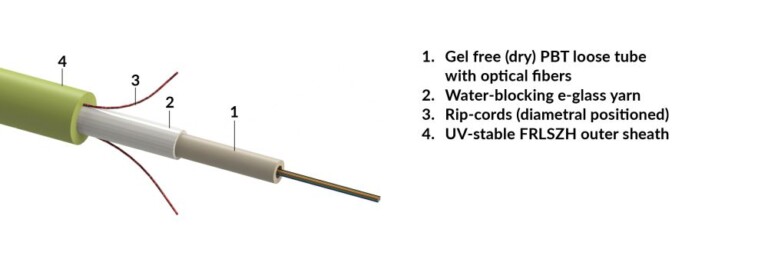

Central loose tube, gel-free cable, iRP-increased rodent protected, universal-use, UV.FRLSZH sheath - lime green, Cca, 01 x 06 fibers OM5 (R870421)
| Temperature cycling |
-20 °C +70 °C / -4 °F +158 °F |
| Temperature cycling acceptance criteria |
Δα ≤ 0,05 dB |
| Temperature cycling test method |
IEC 60794-1-22:F1 |
| Reversible temperature cycling |
-25 °C +70 °C / -13 °F +158 °F |
| Reversible temperature cycling acceptance criteria |
Δα ≤ 0,15 dB, reversible |
| Reversible temperature cycling test method |
IEC 60794-1-22:F1 |
| Operation temperature |
-20 °C to +70 °C / -4 °F to +158 °F |
| Storage / Transport temperature |
-25 °C to +70 °C / -13 °F to +158 °F |
| Water penetration |
L = 3 m, h = 1 m, 24 h |
| Water penetration acceptance criteria |
no water leakage |
| Water penetration test method |
IEC 60794-1-22:F5B |
| Thermal load |
0.63 MJ/m |
| Flammability vertical single cable |
Pass |
| Flammability vertical single cable test method |
IEC 60332-1-2 |
| Smoke density |
Pass |
| Smoke density test method |
IEC 61034-2 |
| Halogen free, acid gases |
Pass |
| Halogen free, acid gases test method |
IEC 60754-2 |
| 2015 / 863 / EU - RoHS 3 |
conform |
| In-service tensile strength |
1000 N |
| In-service tensile strength acceptance criteria |
Δα ≤ 0,05 dB |
| In-service tensile strength test method |
IEC 60794-1-21:E1 |
| Installation tensile strength |
2000 N |
| Installation tensile strength acceptance criteria |
Δα ≤ 0,05 dB after test |
| Installation tensile strength test method |
IEC 60794-1-21:E1 |
| Crush resistance long term |
2000 N/100mm |
| Long-term crush resistance acceptance criteria |
Δα ≤ 0,05 dB prior release, no damage |
| Long-term crush resistance test method |
IEC 60794-1-21:E3A |
| Short-term crush resistance |
4000 N/100mm |
| Short-term crush resistance acceptance criteria |
Δα ≤ 0,05 dB after release, no damage |
| Short-term crush resistance test method |
IEC 60794-1-21:E3A |
| Impact resistance |
10 Nm, 3 impacts, d=20 mm, R=300 mm |
| Impact resistance acceptance criteria |
Δα ≤ 0,05 dB after test, no damage |
| Impact resistance test method |
IEC 60794-1-21:E4 |
| Torsion |
L = 1 m, rotation angle ±180°, 10 cycles |
| Torsion acceptance criteria |
no damage |
| Torsion test method |
IEC 60794-1-21:E7 |
| Repeated bending |
R=10 x cable diameter, 25 cycles, m = 4Kg |
| Repeated bending acceptance criteria |
no damage |
| Repeated bending test method |
IEC 60794-1-21:E6 |
| Cable bend |
d=20 x cable diameter, 4 turns, 3 cycles |
| Cable bend acceptance criteria |
Δα ≤ 0,05 dB after test, no damage |
| Cable bend test method |
IEC 60794-1-21:E11A |
| Minimum bend radius in service |
100 mm |
| Minimum bend radius during installation |
140 mm |
| Cable family code |
UTd1GF FiRis |
| Cable type |
Central loose tube cable |
| Cable version |
Gel-free installation cable |
| Cable application |
universal use |
| CPR classification |
Cca-s1a,d0,a1 |
| DoP number |
D9088 |
| Fiber type |
OM5 |
| Fiber count |
6 |
| Fiber color coding |
1.-12.: red, green, blue, yellow, white, grey, brown, violet, turquoise, black, orange, pink |
| Fiber count per tube |
12 |
| Loose tube count |
1 |
| Loose tube diameter |
2,8 mm |
| Armor |
Rodent protection |
| Outer sheath thickness |
1,2 mm |
| Outer sheath material |
UV stable FRLSZH |
| Outer sheath color |
lime green |
| Cable outer diameter |
6,8 mm |
| Cable weight |
32.0 kg/km / 21 lbs/1000ft |
| DIN / VDE 0888 code |
U-BQ(BN)H wbg |
| Warranty |
R&Mfreenet |
| CPR classification |
Cca |
| Minimum bending radius |
no tension - 10 x cable diameter |
