Name: Connection Module Cat. 8.1, 1xRJ45/s, Special, 100x (R847825) - Synge Inc.
SKU: R847825
Price: 6039.30 CAD
Availability: InStock

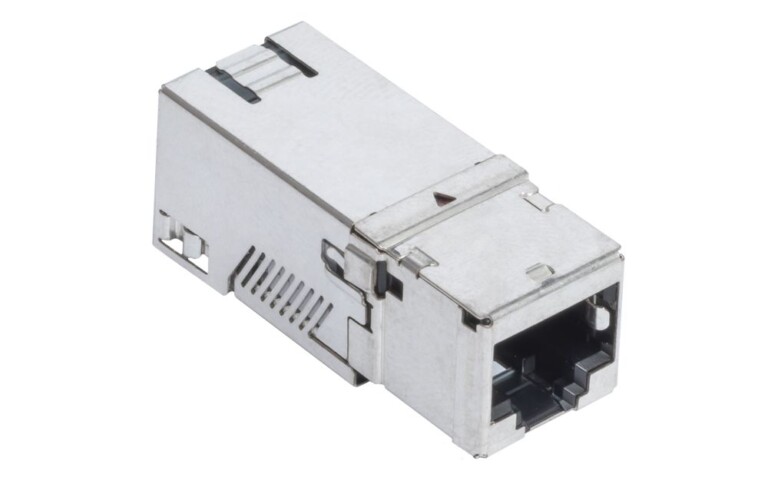

Connection Module Cat. 8.1, 1xRJ45/s, Special, 100x (R847825)

The R&Mfreenet Cat 8.1 shielded connection module, part of the freenet cabling system, are ideal for very fast data transmissions and high bandwidth applications. This high-performance Cat 8.1 module is perfect for use in 25/40 Gigabit Ethernet (25GBASE-T / 40GBASE-T) and future high-speed applications up to 2000 MHz.

Electrical Data

Input-Output Resistance	< 40 mΩ
Insulation Resistance	> 500 MΩ (100 V DC)
Contact Resistance	≤ 5 mΩ

Environmental Characteristics

Operation temperature	-10 °C to +60 °C / +14 °F to +140 °F
Storage / Transport temperature	-40 °C to +70 °C / -40 °F to +158 °F
Relative Humidity	0% - 95% non-condensing

Mechanical Data

Dimensions	43.2 mm x 15.5 mm x 15.6 mm / 1.701 in x 0.61 in x 0.614 in (W x H x D)
Color	silver / black
Material	plastic: PC, UL 94 V-0

Technical Data

Shield Module Material	CuSn, tin-plated
Category connector (A)	Cat. 8.1
Connector type (A)	RJ45
Shielding connector (A)	shielded
Protection class IP	IP 20
PoE	Yes
PoE Level	Yes up to type 3
Connector class	connection module
Wiring diagram	T568A and T568B
Holder for connector / module	Special (without mounting plate)
Contact Surface	>1.2µm gold over nickel
Poles	8
Standard	IEC 60603-7 ISO/IEC 11801 EN50173-1 EN 50173-1 TIA/EIA 568.2-D ISO/IEC TR11801-9909
Housing Material	Polycarbonate (UL-94-V0)

Connection Module Cat. 8.1, 1xRJ45/s, Special, 100x (R847825)
