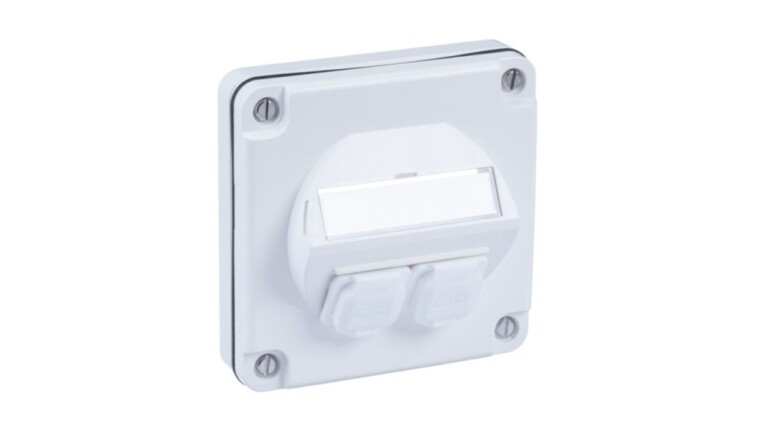

FM DA-Connection Box Splash Line IP54, II, 87x87, Cat.6A, 2 Port, white (R880798)

In and outdoor flush-mounted boxes made of impact-resistant PC + ABS thermoplastic.

The flush-mounted boxes comply with protection classes IP54 and IP67 and are also UV and weather resistant.

SKU: R880798 Categories: , , ,
Mechanical Data

Dimensions

87.0 mm x 87.0 mm / 3.425 in x 3.425 in (W x H)
Color Code NCS

S 0500-N
Material

plastic: PC + ABS
Technical Data

Protection class IP

IP 54 (correlates to NEMA 3S)
Application area

flush-mounting (FM)
Assembly

empty
Outlet type

outlet
Holder for connector / module

Special (without mounting plate)
Capacity (ports)

2
Distributor housing type

housing
Standard

Halogen-free, in accordance with DIN/VDE 0472/815

Installation instructions

 Download
Prod
