Name: inteliPhy Monitor 19" 1U Remote Display (R814561) - Synge Inc.
SKU: R814561

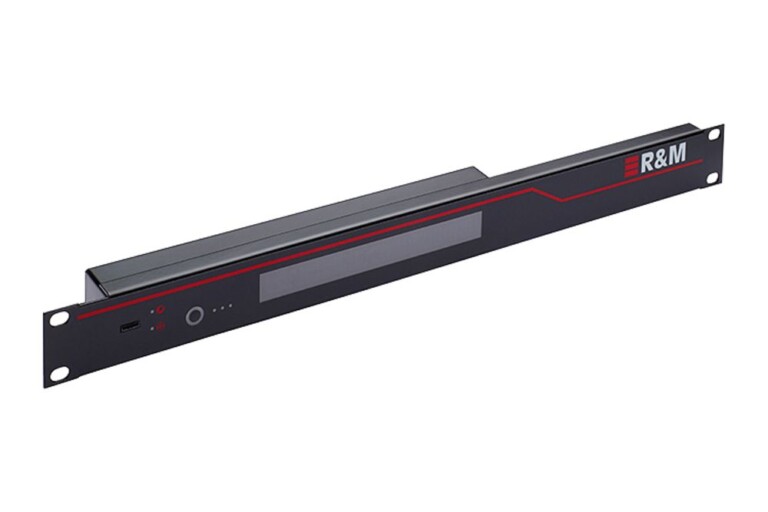

inteliPhy Monitor 19" 1U Remote Display (R814561)

Analyzer to be mounted in 19" network cabinets. Features LCD display and Ethernet interface. Controls up to 42 sensor bars.

Environmental Characteristics

Operation temperature	0 °C to +40 °C / +32 °F to +104 °F
Altitude standard	IEC 60721-3-3 Class 3K1
Relative Humidity	0% - 95% non-condensing
Environment	WEEE, ROHS, REACH
Vibration and shock	Stationary and non-stationary vibration, including shock
Vibration and shock standard	IEC 60721-3-3 Class 3M1

Mechanical Data

Technical Data

Amount of height units	1 U
Protocols	Ethernet, TCP/IP, SNMPv1, SNMPv2, SNMPv3
User interfaces	3 x LED, Backlit LCD display 2 x 40 characters, 1 x function button, 1 x reset button
EMC	2004 / 108 / EC
Fastening	19 "
Interface	1 x Bus cable, 1 x Ethernet, 2 x USB host, 1 x RS-232, 1 x rack lamp
