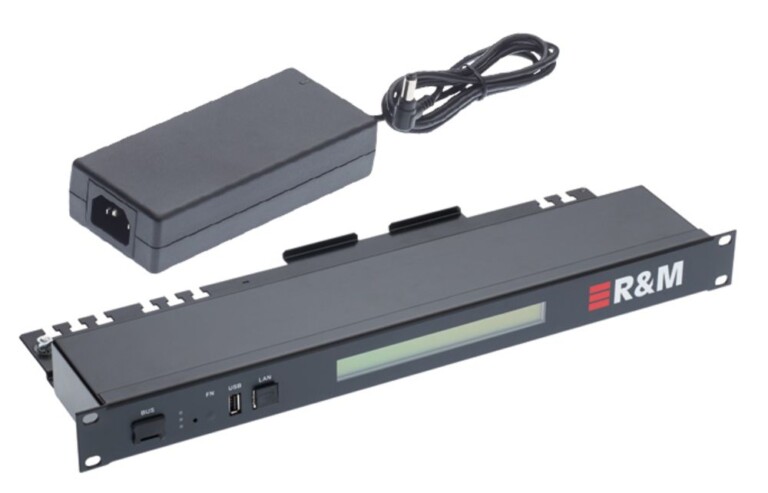

inteliPhy Monitor Analyzer 19" 1U with power supply 70W (R837015)

Analyzer to be mounted in 19" network cabinets. Features LCD display and Ethernet interface. Controls up to 42 sensorbars or netscale panel control units.

SKU: R837015 Categories: Analyzer and Bus Cabling, Automated Infrastructure Management, Home, inteliPhy Monitor (Hardware)

Environmental Characteristics

Operation temperature	0 °C to +40 °C / +32 °F to +104 °F
Altitude standard	IEC 60721-3-3 Class 3K1
Relative Humidity	0% - 95% non-condensing
Environment	WEEE, ROHS, REACH
Vibration and shock	Stationary and non-stationary vibration, including shock
Vibration and shock standard	IEC 60721-3-3 Class 3M1

Mechanical Data

Dimensions	485.0 mm x 44.45 mm x 171.0 mm / 19.094 in x 1.75 in x 6.732 in (W x H x D)
Color Code RAL	9005 Jet black
Material	Sheet metal
Cable Length	25.0 m / 82 ft
Weight (Kg)	2,7

Technical Data

Protocols	Ethernet, TCP/IP, SNMPv1, SNMPv2, SNMPv3
User interfaces	3 x LED, Backlit LCD display 2 x 40 characters, 1 x function button, 1 x reset button
EMC	2004 / 108 / EC
Interface	1 x Bus cable, 1 x Ethernet, 2 x USB host, 1 x RS-232, 1 x rack lamp
