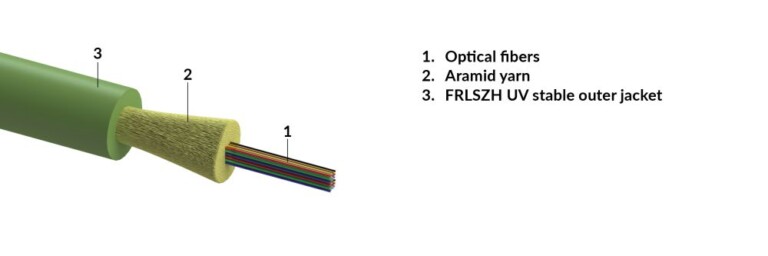

MiniCore multi fiber harness cable, Cca, Ø 3.0 mm, 12 x G50/125 OM5 fiber, FRLSZH jacket, lime green (R866569)
| Temperature cycling |
20 °C 60 °C / +68 °F +140 °F |
| Temperature cycling acceptance criteria |
Δα ≤ 0,05 dB |
| Temperature cycling test method |
IEC 60794-1-22:F1 |
| Reversible temperature cycling |
25 °C 70 °C / +77 °F +158 °F |
| Reversible temperature cycling acceptance criteria |
Δα ≤ 0,15 dB, reversible |
| Operation temperature |
20 °C to 60 °C / +68 °F to +140 °F |
| Storage / Transport temperature |
25 °C to 70 °C / +77 °F to +158 °F |
| Thermal load |
0.25 MJ/m |
| Flammability vertical single cable |
Pass |
| Flammability vertical single cable test method |
IEC 60332-1-2 |
| Smoke density |
Pass |
| Smoke density test method |
IEC 61034-1, IEC 61034-2 |
| Halogen free, acid gases |
Pass |
| Halogen free, acid gases test method |
IEC 60754-1, IEC 60754-2 |
| 2015 / 863 / EU - RoHS 3 |
conform |
| 1907 / 2006 / EU - REACH |
conform |
| Installation tensile strength |
250 N (max. allow-able tension) |
| Installation tensile strength acceptance criteria |
Δα ≤ 0,05 dB after test |
| Installation tensile strength test method |
IEC 60794-1-21:E1 |
| Crush resistance long term |
300 N/100mm |
| Long-term crush resistance acceptance criteria |
Δα ≤ 0,05 dB prior release, no damage |
| Long-term crush resistance test method |
IEC 60794-1-21:E3A |
| Short-term crush resistance |
500 N/100mm |
| Short-term crush resistance acceptance criteria |
Δα ≤ 0,05 dB after release, no damage |
| Short-term crush resistance test method |
IEC 60794-1-21:E3A |
| Impact resistance |
1 Nm, 3 impacts, d=20 mm, R=12,5 mm |
| Impact resistance acceptance criteria |
Δα ≤ 0,05 dB after test, no damage |
| Impact resistance test method |
IEC 60794-1-21:E4 |
| Torsion |
L = 1 m, rotation angle ±180°, 10 cycles, F= 20N |
| Torsion acceptance criteria |
no damage |
| Torsion test method |
IEC 60794-1-21:E7 |
| Kink |
d=20 x cable diameter |
| Kink acceptance criteria |
no kink |
| Kink test method |
IEC 60794-1-21:E10 |
| Cable bend |
d=15 x cable diameter, 4 turns, 3 cycles |
| Cable bend acceptance criteria |
Δα ≤ 0,05 dB after test, no damage |
| Cable bend test method |
IEC 60794-1-21:E11A |
| Cable family code |
IAF250 FiRis |
| Cable type |
MiniCore cable |
| Cable version |
Multifiber harness cable |
| Cable application |
Connector assembly |
| CPR classification |
Cca-s2,d0,a1 |
| DoP number |
D9075 |
| Fiber type |
Multimode OM5 |
| Fiber count |
12 |
| Fiber color coding |
1.-12.: red, green, blue, yellow, white, grey, brown, violet, turquoise, black, orange, pink |
| Loose tube count |
0 |
| Outer sheath thickness |
0,55 mm |
| Outer sheath material |
FRLSZH |
| Outer sheath color |
lime green |
| Sheath marking |
Ink-Jet, black |
| Cable outer diameter |
3 mm |
| Cable weight |
8.0 kg/km / 5 lbs/1000ft |
| DIN / VDE 0888 code |
J-(ZN)H |
| CPR classification |
Cca |
