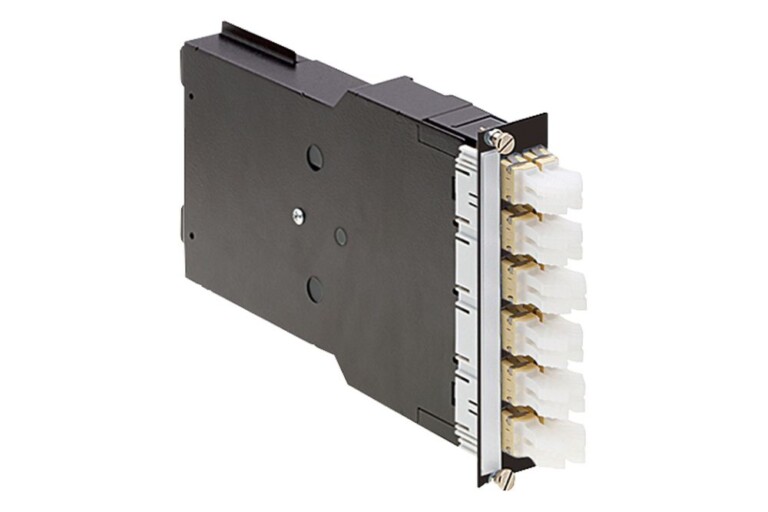

MPO Modul 7HP, metal, 2xMTP12-female - 12xLC-Duplex, OM4, PC/PC, ceramic, type S+, black (R868284)

Mechanical Data

Dimensions

35.0 mm x 129.0 mm x 215.0 mm / 1.378 in x 5.079 in x 8.465 in (W x H x D)

Color Code RAL

9005 Jet black

Technical Data

Fiber type

Multimode (MM)

Conductor type FO

semi-tight buffer, dry

Fiber class

OM4

Fiber diameter

G50 / 125 µm

Number of connectors (A)

2

Number of connectors (B)

12

Connector type (A)

MPO, female

Connector type (B)

LC-Duplex

Connector color (A)

gray

Connector color (B)

heather violet

Polishing plug (A)

PC

Polishing plug (B)

PC

Protection class IP (A)

IP 20

Protection class IP (B)

IP 20

Return loss grade RL (A)

4

Protection class IP

IP 20

Return loss grade RL (B)

3

Attenuation grade IL (A)

Cm

Wiring diagram

type S+

Rack mounting version

slide-in unit

Adapter fastening method

end cap snap-in

Assembly

fully populated

Sleeve material

ceramic

Standard

MPO connectors acc. to IEC 61754-7-1 (MPO connector family - one fiber row)
