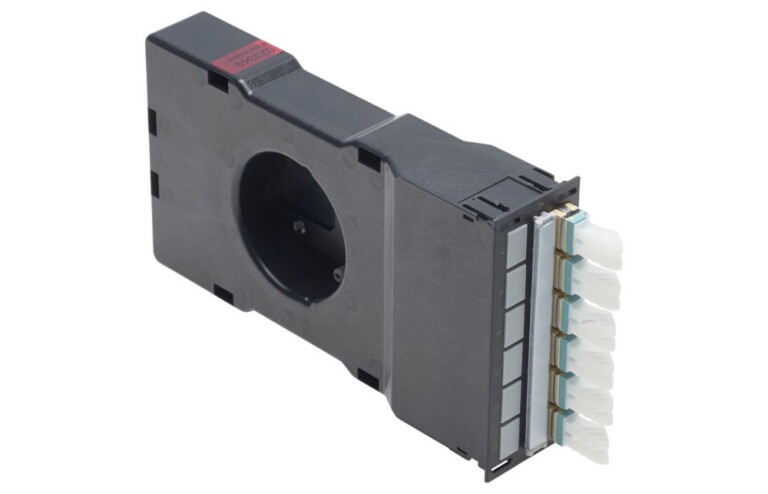

MPO Modul HD, MPO12-female - 6xLC-Duplex, G.657.A2, APC/PC, type S+, black (R872407)
SKU: R872407
Categories: 19" Subrack Solutions, Fiber Optics, Home, MPO/MTP Module HD (Type S)
Environmental Characteristics
| Operation temperature |
10 °C to 60 °C / +50 °F to +140 °F |
Mechanical Data
| Dimensions |
43.2 mm x 109.9 mm x 217.0 mm / 1.701 in x 4.327 in x 8.543 in (W x H x D) |
| Color Code RAL |
9005 Jet black |
| Material |
plastic: PC, fiber-glass reinforced, halogen-free |
Technical Data
| Fiber type |
Singlemode (SM) |
| Conductor type FO |
semi-tight buffer, dry |
| Fiber class |
G.657.A1 (covers G.652.D, OS1, OS2) |
| Fiber diameter |
n.a. |
| Number of connectors (A) |
1 |
| Number of connectors (B) |
6 |
| Connector type (A) |
MPO, female |
| Connector type (B) |
LC-Duplex |
| Connector color (A) |
black |
| Connector color (B) |
blue |
| Polishing plug (A) |
APC 8° |
| Polishing plug (B) |
PC |
| Protection class IP (A) |
IP 20 |
| Protection class IP (B) |
IP 20 |
| Protection class IP |
IP 20 |
| Return loss (RL) |
≥ 45 dB |
| Insertion loss (IL) max. value |
≤ 0.4 dB |
| Wiring diagram |
type S+ |
| Rack mounting version |
slide-in unit |
| Adapter fastening method |
end cap snap-in |
| Assembly |
partly populated |
| Sleeve material |
ceramic |
| Standard |
UL Listed acc. to IEC 61754-15 acc. to DIN EN 186270 |
