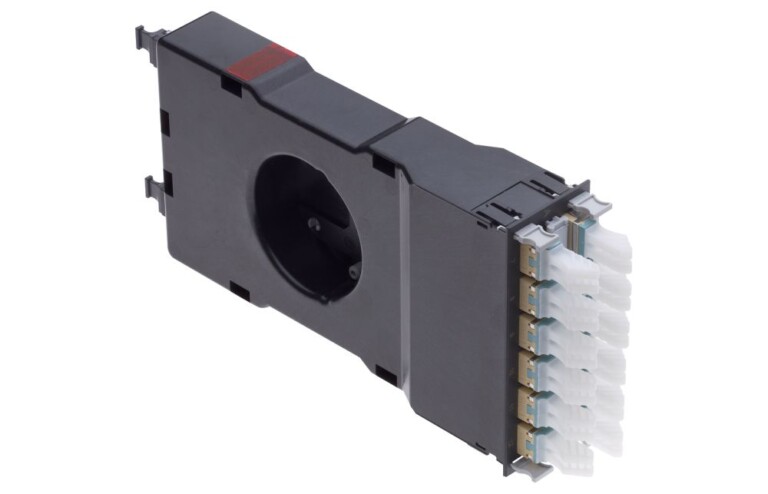

MPO Module HD, 2xMTP12-female - 12xLC-Duplex, OM5, PC/PC, type S+, black (R868283)
SKU: R868283
Categories: 19" Subrack Solutions, Fiber Optics, Home, MPO/MTP Module HD (Type S)
Environmental Characteristics
| Operation temperature |
10 °C to 60 °C / +50 °F to +140 °F |
Mechanical Data
| Dimensions |
43.2 mm x 109.9 mm x 214.4 mm / 1.701 in x 4.327 in x 8.441 in (W x H x D) |
| Color Code RAL |
9005 Jet black |
| Material |
plastic: PC, fiber-glass reinforced, halogen-free |
Technical Data
| Fiber type |
Multimode (MM) |
| Conductor type FO |
semi-tight buffer, dry |
| Fiber class |
OM5 |
| Fiber diameter |
G50 / 125 µm |
| Number of connectors (A) |
2 |
| Number of connectors (B) |
12 |
| Connector type (A) |
MPO, female |
| Connector type (B) |
LC-Duplex |
| Connector color (B) |
green |
| Polishing plug (A) |
PC |
| Polishing plug (B) |
PC |
| Protection class IP (A) |
IP 20 |
| Protection class IP (B) |
IP 20 |
| Protection class IP |
IP 20 |
| Return loss (RL) |
≥ 35 dB |
| Insertion loss (IL) max. value |
≤ 0.35 dB |
| Wiring diagram |
type S+ |
| Rack mounting version |
slide-in unit |
| Adapter fastening method |
end cap snap-in |
| Capacity (ports) |
12 |
| Standard |
UL Listed MPO connectors acc. to IEC 61754-7-1 (MPO connector family - one fiber row) |
