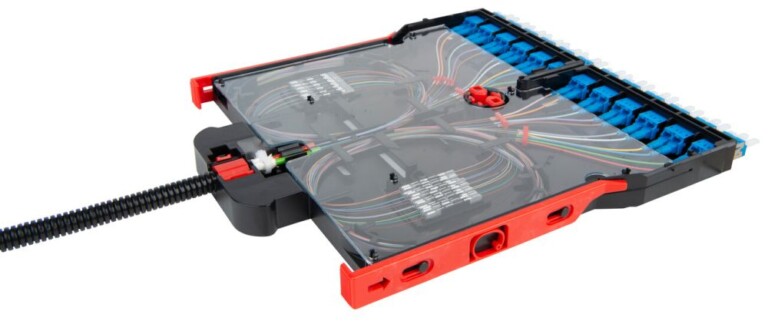

Netscale 48 Splice Cassette 12 SC SM top black (R870479)

Netscale 48 – The most versatile Mixed-Media Patch Panel on the market with thoughtful cable management system.

SKU: R870479 Categories: , , , ,
Environmental Characteristics

Operation temperature

-10 °C to +60 °C / +14 °F to +140 °F
Mechanical Data

Dimensions

209 mm x 19.8 mm x 265 mm / 8.228 in x 0.78 in x 10.433 in (W x H x D)
Color Code RAL

9005 Jet black
Material

PC + ABS halogen-free, UL 94 V-0
Technical Data

Fiber type

Singlemode (SM)
Fiber count

12
Conductor type FO

dry semi-tight buffer, strippability > 1.5m
Fiber class

G.657.A2 (covers G.652.D, G.657.A1+B2, OS1, OS2)
Fiber diameter

E09 / 125 µm
Number of connectors (A)

12
Connector type (A)

SC
Connector color (A)

blue
Polishing plug (A)

PC
Protection class IP

IP 20 (Protection against contact)
Rack mounting version

Splice Cassette fitting to Netscale 48
Adapter fastening method

flange-less - with quick mounting clip
Capacity (ports)

12
Sleeve material

ceramic
Standard

Protection class: IP20 acc. to IEC 60529

Installation instructions

 Download
