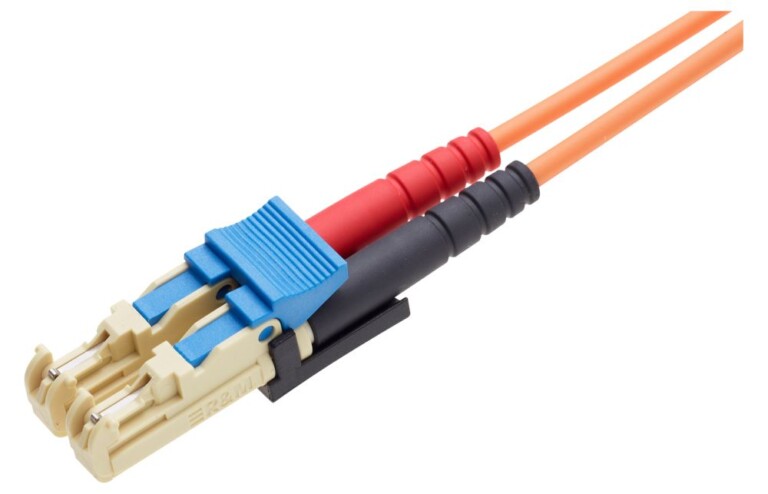

Name: Patch cord FO, E-2000-Compact PC/UPC Grade Bm - E-2000-Compact PC/UPC Grade Bm, Multimode OM1 (G62.5), Duplex Figur 8 (2.7 x 5.6),FRLSZH, 5m (R323131) - Synge Inc.
SKU: R323131
Price: 180.36 CAD
Availability: InStock

Cable type	Patch cord, polarity A-B
Fiber type	Multimode (MM)
Outer sheath material	LSZH
Cable sheath characteristics	Cable, metal-free zero-halogen flame retardant
Patch cord type	Duplex figure "8"
Conductor type FO	tight buffer
Fiber class	OM1
Fiber diameter	G62.5 / 125 µm
Number of connectors (A)	1
Number of connectors (B)	1
Cable overall diameter	F8 2.7 x 5.5 mm (±0.15)
Connector type (A)	E-2000™-Compact
Connector type (B)	E-2000™-Compact
Connector color (A)	beige
Connector color (B)	beige
Lever- / frame-coding (A)	Color
Lever color (A)	blue
Lever- / frame-coding (B)	Color
Lever color (B)	blue
Polishing plug (A)	PC
Polishing plug (B)	PC
Protection class IP (A)	IP 20
Protection class IP (B)	IP 20
Return loss grade RL (A)	3
Protection class IP	IP 20
Return loss grade RL (B)	3
Attenuation grade IL (A)	Bm
Attenuation grade IL (B)	Bm
Connector class	connector

Color	orange
Cable Length	5.0 m / 16 ft

Patch cord FO, E-2000-Compact PC/UPC Grade Bm - E-2000-Compact PC/UPC Grade Bm, Multimode OM1 (G62.5), Duplex Figur 8 (2.7 x 5.6),FRLSZH, 5m (R323131)
