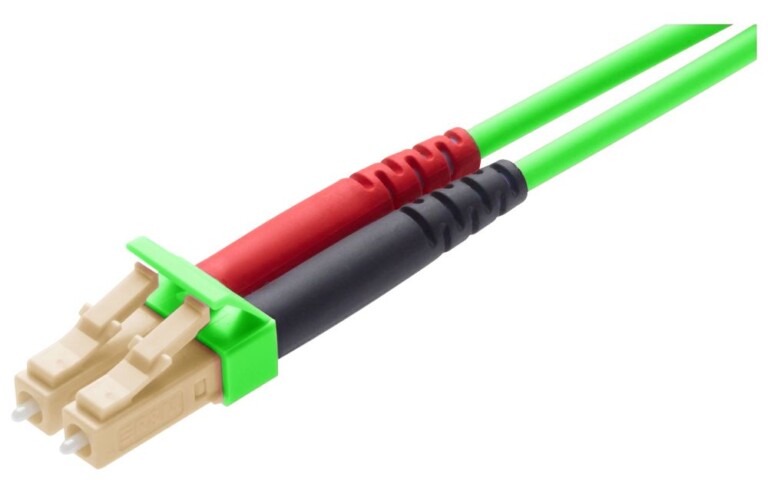

Patch cord FO, LC-Duplex PC/UPC Grade Am - LC-Duplex PC/UPC Grade Am, Multimode OM5 (G50), Duplex Figur 8 (2.0 x 4.2), FRLSZH, 3m (R842582)

Both sides fitted with LC-Duplex PC connector.

Connector color: beige.

Lever color: lime green.

Fiber: MM G50/125 (OM5), bend-optimized.

Cable: F8 2.0x4.1 mm, lime green.

SKU: R842582 Categories: , , ,
Mechanical Data

Color

lime green
Cable Length

3.0 m / 9 ft 10 in
Technical Data

Cable type

Patch cord, polarity A-B
Cable design

Single Jacket
Fiber type

Multimode (MM)
Outer sheath material

FRLSZH
Cable sheath characteristics

Cable, metal-free

zero-halogen

flame retardant

low smoke
Patch cord type

Duplex figure "8"
Conductor type FO

tight buffer
Fiber class

OM5
Fiber diameter

G50 / 125 µm
Number of connectors (A)

1
Number of connectors (B)

1
Cable overall diameter

F8 2.0 x 4.1 mm (±0.15)
Connector type (A)

LC-Duplex
Connector type (B)

LC-Duplex
Connector color (A)

beige
Connector color (B)

beige
Lever- / frame-coding (A)

Color
Lever color (A)

lime green
Lever- / frame-coding (B)

Color
Lever color (B)

lime green
Polishing plug (A)

PC
Polishing plug (B)

PC
Protection class IP (A)

IP 20
Protection class IP (B)

IP 20
Return loss grade RL (A)

2
Protection class IP

IP 20
Return loss grade RL (B)

2
Attenuation grade IL (A)

Am
Attenuation grade IL (B)

Am
Connector class

connector
CPR classification

Eca
Standard

LC connector acc. to IEC 61754-20

Installation instructions

 Download
