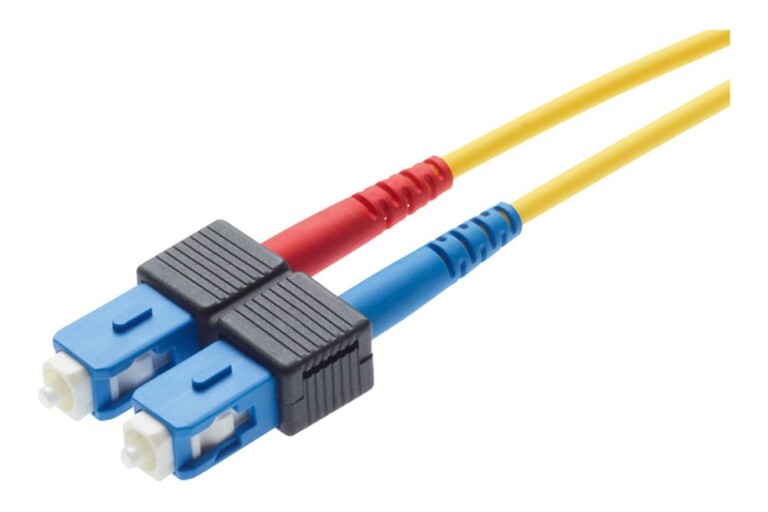

Name: Patch cord FO, SC-Duplex PC/UPC Grade C - SC-Duplex PC/UPC Grade C, Singlemode OS2 G.657.A2, Duplex Figur 8 (2.7 x 5.6), FRLSZH, 3m (R818733) - Synge Inc.
SKU: R818733
Price: 81.63 CAD
Availability: InStock

Cable type	Patch cord (duplex), polarity A-B
Fiber type	Singlemode (SM)
Outer sheath material	LSZH
Cable sheath characteristics	Kabel metallfrei halogenfrei falmmwidrig
Fiber diameter	n.a.
Number of connectors (A)	2
Number of connectors (B)	2
Cable overall diameter	2.7 x 5.4 mm
Connector type (A)	SC-Duplex
Connector type (B)	SC-Duplex
Connector color (A)	blue
Lever- / frame-coding (A)	Color
Lever- / frame-coding (B)	Color
Lever color (B)	black
Polishing plug (A)	PC
Polishing plug (B)	PC
Protection class IP (A)	IP 20
Protection class IP (B)	IP 20
Return loss grade RL (A)	2
Protection class IP	IP 20
Return loss grade RL (B)	2
Attenuation grade IL (A)	C
Attenuation grade IL (B)	C
Connector class	connector

Color	yellow
Cable Length	3.0 m / 9 ft 10 in

Patch cord FO, SC-Duplex PC/UPC Grade C - SC-Duplex PC/UPC Grade C, Singlemode OS2 G.657.A2, Duplex Figur 8 (2.7 x 5.6), FRLSZH, 3m (R818733)
