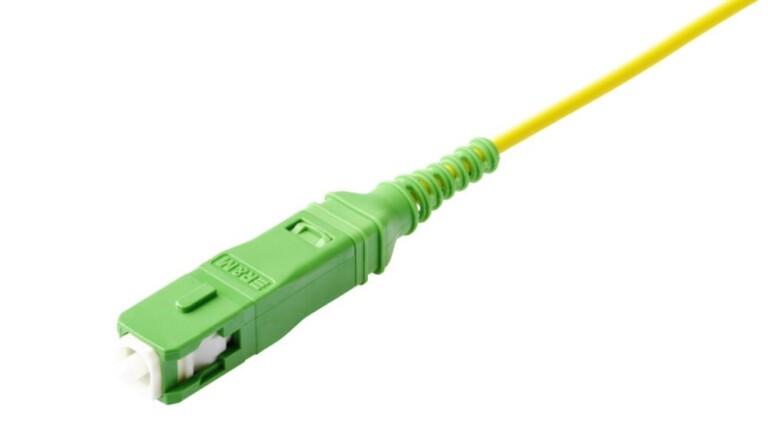

Name: Patch cord FO, SC-QR Simplex APC 8° Grade C - SC-QR Simplex APC 8° Grade C, Singlemode OS2 G.657.A2, Simplex 2.0mm, FRLSZH, 5m (R900705) - Synge Inc.
SKU: R900705
Price: 50.02 CAD
Availability: InStock

Cable type	Patch cord, polarity A-A
Fiber type	Singlemode (SM)
Outer sheath material	FRLSZH
Cable sheath characteristics	Cable, metal-free zero-halogen flame retardant
Patch cord type	Simplex
Conductor type FO	tight buffer
Fiber class	G.657.A2 (covers G.652.D, G.657.A1+B2, OS1, OS2)
Fiber diameter	E09 / 125 µm
Number of connectors (A)	1
Number of connectors (B)	1
Connector type (A)	SC-QR
Connector type (B)	SC-QR
Connector color (A)	green
Connector color (B)	green
Polishing plug (A)	APC 8°
Polishing plug (B)	APC 8°
Protection class IP (A)	IP 20
Protection class IP (B)	IP 20
Return loss grade RL (A)	1
Protection class IP	IP 20
Return loss grade RL (B)	1
Connector class	connector

Patch cord FO, SC-QR Simplex APC 8° Grade C - SC-QR Simplex APC 8° Grade C, Singlemode OS2 G.657.A2, Simplex 2.0mm, FRLSZH, 5m (R900705)
