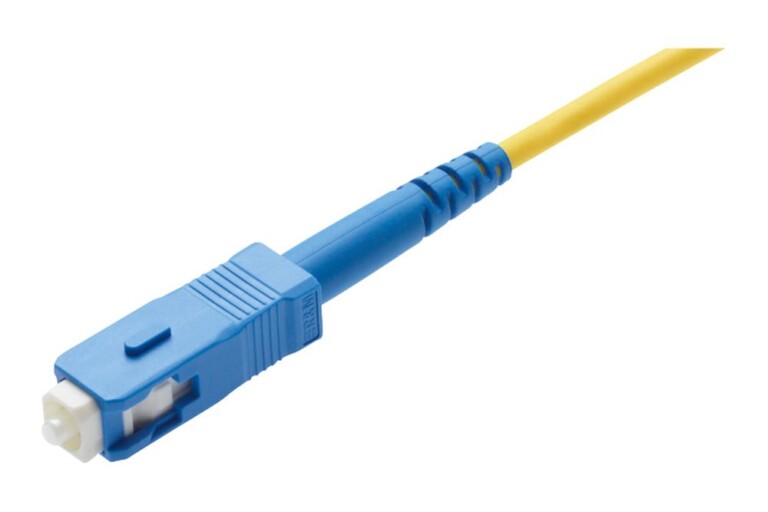

Patch cord FO, SC-Simplex PC/UPC Grade C - SC-Simplex PC/UPC Grade C, Singlemode OS2 G.657.A2, Simplex 3.0mm, FRLSZH, 3m (R890120)

SKU: R890120 Categories: , , ,
Environmental Characteristics

Operation temperature

-10 °C to +60 °C / +14 °F to +140 °F
Storage / Transport temperature

-25 °C to +75 °C / -13 °F to +167 °F
Mechanical Data

Color

yellow
Cable Length

3.0 m / 9 ft 10 in
Technical Data

Cable type

Patch cord, polarity A-A
Cable design

Single Jacket
Fiber type

Singlemode (SM)
Outer sheath material

FRLSZH
Cable sheath characteristics

Cable, metal-free

zero-halogen

flame retardant

low smoke
Patch cord type

Simplex
Conductor type FO

tight buffer
Fiber class

G.657.A2 (covers G.652.D, G.657.A1+B2, OS1, OS2)
Fiber diameter

E09 / 125 µm
Number of connectors (A)

1
Number of connectors (B)

1
Cable overall diameter

Ø 3.0 mm (±0.15)
Connector type (A)

SC
Connector type (B)

SC
Connector color (A)

blue
Connector color (B)

blue
Color (B1)

blue
Polishing plug (A)

PC
Polishing plug (B)

PC
Protection class IP (A)

IP 20
Protection class IP (B)

IP 20
Return loss grade RL (A)

2
Protection class IP

IP 20
Return loss grade RL (B)

2
Attenuation grade IL (A)

C
Attenuation grade IL (B)

C
Connector class

connector
CPR classification

Eca
Standard

SC connector acc. to IEC 61754-4

Installation instructions

 Download
