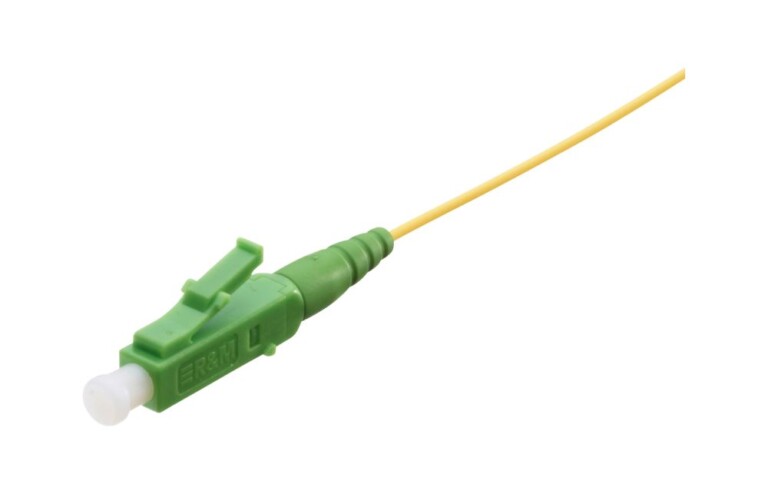

Pigtail LC APC, green, G.657 blue, C/1, 0.7 m (R505735)

SKU: R505735 Categories: , , ,
Mechanical Data

Cable Length

0.7 m / 2 ft 4 in
Technical Data

Cable type

Pigtail
Fiber type

Singlemode (SM)
Outer sheath material

LSZH
Cable sheath characteristics

Cable, metal-free

zero-halogen

Strippability ≥ 30mm in one piece
Conductor type FO

tight buffer
Fiber class

G.657.A1 (covers G.652.D, OS1, OS2)
Fiber diameter

E09 / 125 µm
Number of connectors (A)

1
Cable overall diameter

Ø 0.6 mm
Connector type (A)

LC
Connector color (A)

green
Polishing plug (A)

APC 8°
Protection class IP (A)

IP 20
Return loss grade RL (A)

1
Connector class

connector
Standard

LC connector acc. to IEC 61754-20

Installation instructions

 Download
