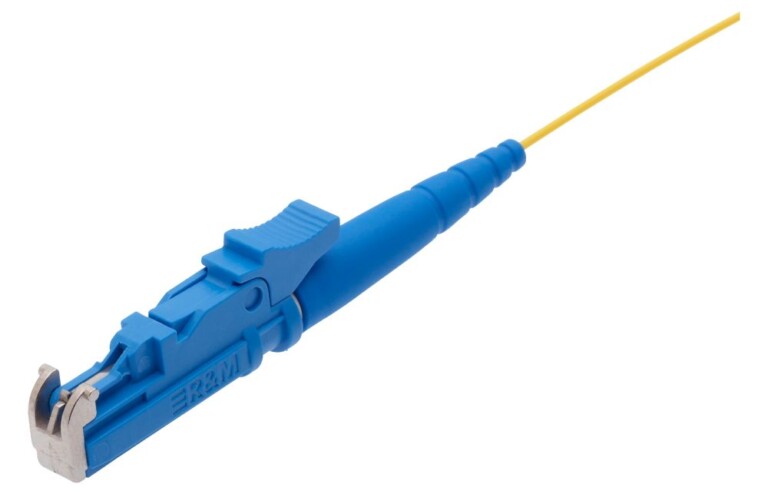

Name: Pigtail Set, E-2000, PC, Grade A, blue, G.657.A, 2.5m;Black, Blue, Brown, Gray, Green, Orange, Pink, Red, Turquoise, Violet, White, Yellow (R898609) - Synge Inc.
SKU: R898609
Price: 1282.23 CAD
Availability: InStock

Cable type	Pigtail
Fiber type	Singlemode (SM)
Outer sheath material	LSZH
Cable sheath characteristics	Cable, metal-free zero-halogen Buffer and fiber coating in the same color
Conductor type FO	dry semi-tight buffer, strippability > 1.5m
Fiber class	G.657.A2 (covers G.652.D, G.657.A1+B2, OS1, OS2)
Fiber diameter	E09 / 125 µm
Cable overall diameter	Ø 0.9 mm
Connector type (A)	E-2000™
Connector color (A)	blue
Lever- / frame-coding (A)	Color
Lever color (A)	blue
Polishing plug (A)	PC
Protection class IP (A)	IP 20
Return loss grade RL (A)	2
Attenuation grade IL (A)	A
Connector class	connector
Standard	E-2000™ (LSH) connector acc. to IEC 61754-15 and EN 186270

Color	red, green, blue, yellow, white, gray, brown, violet, turquoise, black orange and pink
Cable Length	2.5 m / 8 ft 2 in

Pigtail Set, E-2000, PC, Grade A, blue, G.657.A, 2.5m;Black, Blue, Brown, Gray, Green, Orange, Pink, Red, Turquoise, Violet, White, Yellow (R898609)

Installation instructions
