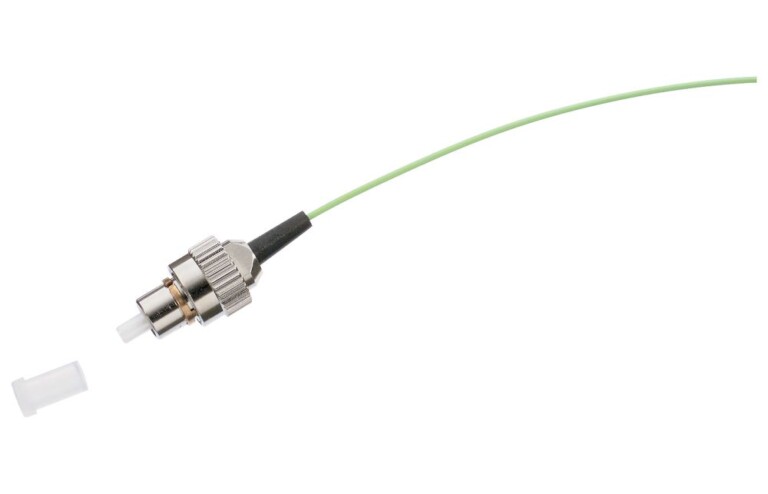

Name: Pigtail Set, FC, APC 8°, Grade C, G.657.A, 2.5m;Black, Blue, Brown, Gray, Green, Orange, Pink, Red, Turquoise, Violet, White, Yellow (R899369) - Synge Inc.
SKU: R899369
Price: 416.31 CAD
Availability: InStock

Cable type	Pigtail
Fiber type	Singlemode (SM)
Outer sheath material	LSZH
Cable sheath characteristics	Cable, metal-free zero-halogen Buffer and fiber coating in the same color
Conductor type FO	dry semi-tight buffer, strippability > 1.5m
Fiber class	G.657.A2 (covers G.652.D, G.657.A1+B2, OS1, OS2)
Fiber diameter	E09 / 125 µm
Number of connectors (A)	1
Cable overall diameter	Ø 0.9 mm
Connector type (A)	FC
Connector color (A)	metallic
Polishing plug (A)	APC
Protection class IP (A)	IP 20
Return loss grade RL (A)	1
Attenuation grade IL (A)	C
Connector class	connector
Standard	FC connector acc. to IEC 61754-13

Color	red, green, blue, yellow, white, gray, brown, violet, turquoise, black orange and pink
Cable Length	2.5 m / 8 ft 2 in

Pigtail Set, FC, APC 8°, Grade C, G.657.A, 2.5m;Black, Blue, Brown, Gray, Green, Orange, Pink, Red, Turquoise, Violet, White, Yellow (R899369)

Installation instructions
