Name: PRIME-Fiber Termination Unit (FTU), Right, Single Fiber, Heatshrink splice protection, 24, SC-Simplex, APC, C1, Green, G.652.D, DIN VDE, (R891842) - Synge Inc.
SKU: R891842
Price: 1574.81 CAD
Availability: InStock

Environmental Characteristics

Operation temperature	-25 °C to +70 °C / -13 °F to +158 °F
Storage / Transport temperature	-40 °C to +85 °C / -40 °F to +185 °F
Halogen free, acid gases	Pass
2015 / 863 / EU - RoHS 3	Pass

Mechanical Data

Color	metal sheet (Black-RAL 9005), front and fiber management (light gray-RAL 7035)
Material	sheet metal and plastic
Weight (Kg)	2,4

Technical Data

Fiber type	Singlemode (SM)
Fiber count	24
Fiber class	G.657.A1 (covers G.652.D, OS1, OS2)
Fiber diameter	n.a.
Number of connectors (A)	24
Connector type (A)	SC
Connector color (A)	green
Polishing plug (A)	APC 8°
Protection class IP (A)	IP 20
Return loss grade RL (A)	1
Attenuation grade IL (A)	C
Rack mounting version	PRIME-3U-Sub-rack, ETSI/19" BM
Assembly	fully populated
Mounting frame type	Slide-in unit
Sleeve material	ceramic
Standard	Adapter and connector in acc. with IEC 61754-4 Pigtails in acc. with color code DIN VDE 0888

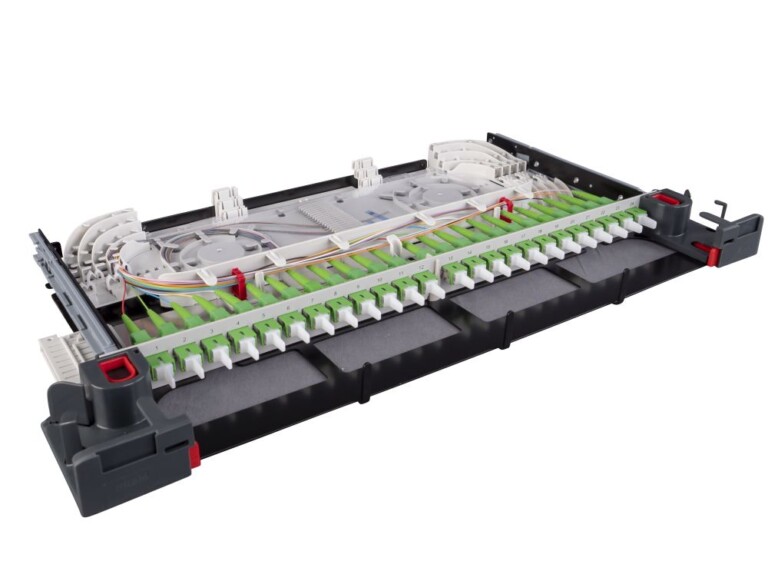

PRIME-Fiber Termination Unit (FTU), Right, Single Fiber, Heatshrink splice protection, 24, SC-Simplex, APC, C1, Green, G.652.D, DIN VDE, (R891842)
