Name: PRIME-Ribbon Termination Unit (RTU), Left, 12F Flat (250my) Ribbon, Ribbon Splice Protector 12F, 48, SC-Simplex, PC, AM2, OM5, EIA/TIA/598- A, (R875325) - Synge Inc.
SKU: R875325
Price: 2817.23 CAD
Availability: InStock

+1 438 282 7517 info@synge.ca

SYNGE

PRIME-Ribbon Termination Unit (RTU), Left, 12F Flat (250my) Ribbon, Ribbon Splice Protector 12F, 48, SC-Simplex, PC, AM2, OM5, EIA/TIA/598- A, (R875325)

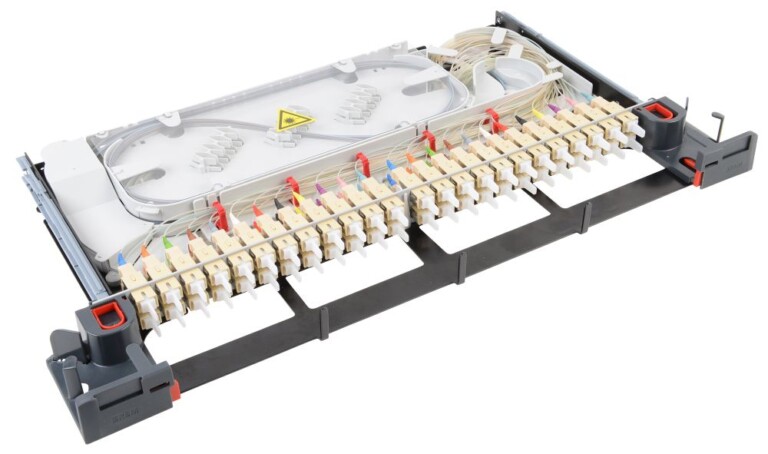

3/4U PRIME RTU (Ribbon Termination Unit), left (LE)

SKU: R875325 Categories: Fiber Optics, Home, Main Distributor PRIME ODF, PRIME ODF 3/4 U Ribbon Units

Environmental Characteristics

Operation temperature	-25 °C to +70 °C / -13 °F to +158 °F
Storage / Transport temperature	-25 °C to +70 °C / -13 °F to +158 °F
Halogen free, acid gases	Pass
2015 / 863 / EU - RoHS 3	Pass

Mechanical Data

Color Code RAL	9005 Jet black / 7035 Light gray
Material	sheet metal and plastic
Weight (Kg)	2,4

Technical Data

Fiber type	OM5
Connector type (A)	SC-Simplex
Connector color (A)	green
Polishing plug (A)	APC 8°
Return loss grade RL (A)	1
Protection class IP	IP 20
Attenuation grade IL (A)	C
Rack mounting version	PRIME-Sub-rack "back mount" (ETSI, 19” or 21”)
Mounting frame type	Slide-in unit
Capacity (ports)	96F
Sleeve material	ceramic
Standard	Adapter and connector in acc. with IEC 61754-20LC, LC-Duplex IEC 61753

Installation instructions

Download
