Name: R&MthinLine Patch Cord, Cat. 6A, Unshielded, Gray, LSZH, TIA 568A, Plug RJ45, u, Plug RJ45, u, 12.5m (R861037) - Synge Inc.
SKU: R861037
Price: 74.29 CAD
Availability: InStock

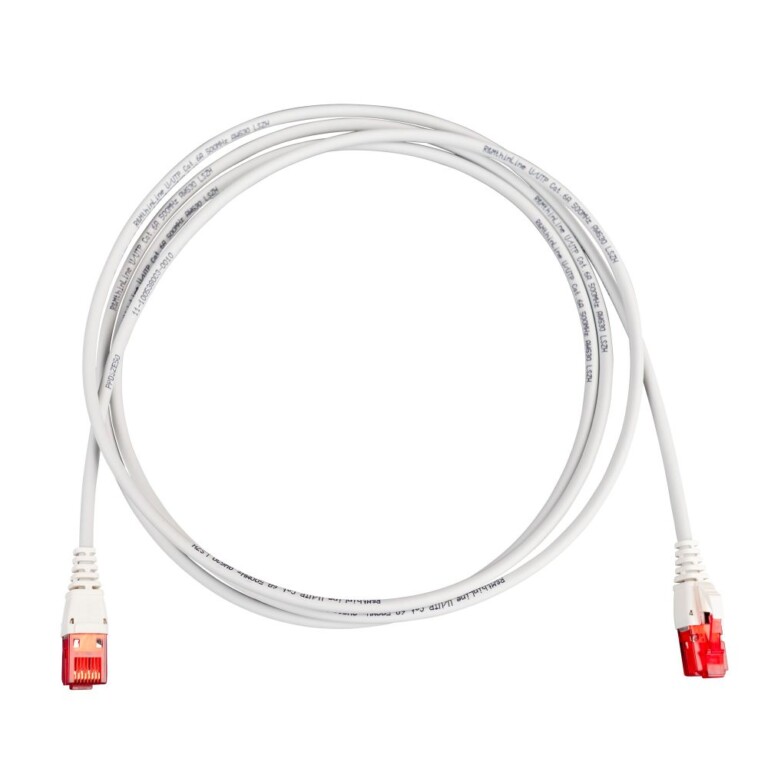

R&MthinLine Patch Cord, Cat. 6A, Unshielded, Gray, LSZH, TIA 568A, Plug RJ45, u, Plug RJ45, u, 12.5m (R861037)

The unshielded Cat. 6A R&MthinLine Patch Cord is ideal for data center and where a high density of cables is required due to limited space. It allows almost for a doubling of the cable amount in agiven cable management system.

Cable type	Patch cord
Outer sheath material	LSZH
Wire type	stranded wire
Conductor Construction	AWG 30/7
Number of wires	8
Stranding	4 pairs
Shielding	ANEXT suppression foil
Cable overall diameter	max. 4.7 mm
Category connector (A)	Cat. 6A ISO
Category connector (B)	Cat. 6A ISO
Connector type (A)	RJ45
Shielding connector (A)	unshielded
Shielding connector (B)	unshielded
Protection class IP	IP 20
PoE Level	4
Connector class	connector
Wiring diagram	TIA-568A
Standard	Fulfills Cat. 6A ISO, Class EA (500 MHz) performance requirements Complies with Category 6A ISO requirements of the standard EN 50173-1 Complies with Category 6A ISO requirements of the standard TIA/EIA 568.2-D Fulfills Cat.6A requirements according to IEC 60603-7-51 Fulfilled the standard IEC 61935-2

Color Code RAL	7035 Light gray
Cable Length	12.5 m / 41 ft
