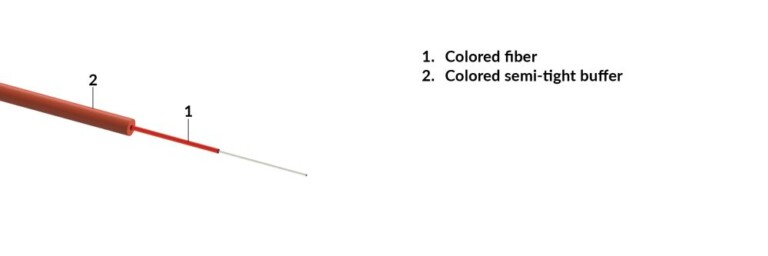

Semi-tight buffered tube Ø 0.9 mm, OM3 fiber, buffer and fiber color red (R861315)
SKU: R861315
Categories: Cables for Connector Termination, Fiber Optics, Home
Environmental Characteristics
| Temperature cycling |
10 °C 60 °C / +50 °F +140 °F |
| Temperature cycling acceptance criteria |
Δα ≤ 0,5 dB @ 1550nm |
| Temperature cycling test method |
IEC 60794-1-22:F12 |
| Thermal load |
0.02 MJ/m |
Mechanical Data
| Installation tensile strength |
50 N (short term) |
| Installation tensile strength acceptance criteria |
Δα ≤ 0,05 dB after test, no damage |
| Installation tensile strength test method |
IEC 60794-1-21:E1 |
| Short-term crush resistance |
150 N/100mm |
| Short-term crush resistance acceptance criteria |
Δα ≤ 0,05 dB after test, no damage |
| Short-term crush resistance test method |
IEC 60794-1-21:E3A |
| Kink |
d=30 x buffer diameter |
| Kink acceptance criteria |
no kink |
| Kink test method |
IEC 60794-1-21:E10 |
| Cable bend |
d=10 mm, 6 turns, 10 cycles |
| Cable bend acceptance criteria |
no fiber breakage |
| Cable bend test method |
IEC 60794-1-21:E11A |
Technical Data
| Cable family code |
IB9e |
| Cable type |
Buffered Fiber |
| Cable version |
Semi-Tight Tube |
| Cable application |
Connector assembly |
| Fiber type |
Multimode OM3 |
| Outer sheath material |
FRLSZH |
| Outer sheath color |
red |
| Cable sheath characteristics |
Strippability ≥ 1500mm in one piece Buffer and fiber coating in the same color |
| Cable outer diameter |
900 mm |
| Cable weight |
0.96 kg/km / 1 lbs/1000ft |
| DIN / VDE 0888 code |
J-VH |
| Fiber diameter |
G50 / 125 µm |
