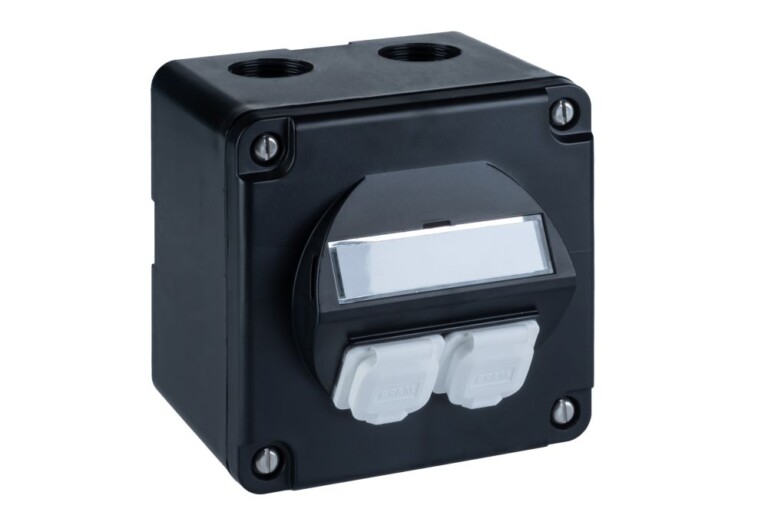

SM DA-Connection Box Splash Line IP54, II, 87x87, Cat.6A, 2 Port, black (R886668)

In- and Outdoor AP outlets made of impact-resistant PC + ABS thermoplastic.

The AP outlets complies with protection class IP54 and IP67, also it is UV and weather resistant.

Info: Cable Gland M20

SKU: R886668 Categories: Home, Outlets - IP54 and IP67, Outlets and Adapters, Twisted Pair Cabling

Mechanical Data

Dimensions	87.0 mm x 87.0 mm / 3.425 in x 3.425 in (W x H)
Color	9005 Jet black
Color Code NCS	S 9000-N
Material	plastic: PC + ABS

Technical Data

Protection class IP	IP 54 (correlates to NEMA 3S)
Application area	surface-mounting (SM)&(FM)
Assembly	empty
Outlet type	surface-mounting (SM)&(FM)
Holder for connector / module	Special (without mounting plate)
Capacity (ports)	2
Distributor housing type	housing
Standard	Halogen-free, in accordance with DIN/VDE 0472/815

Installation instructions

Download
