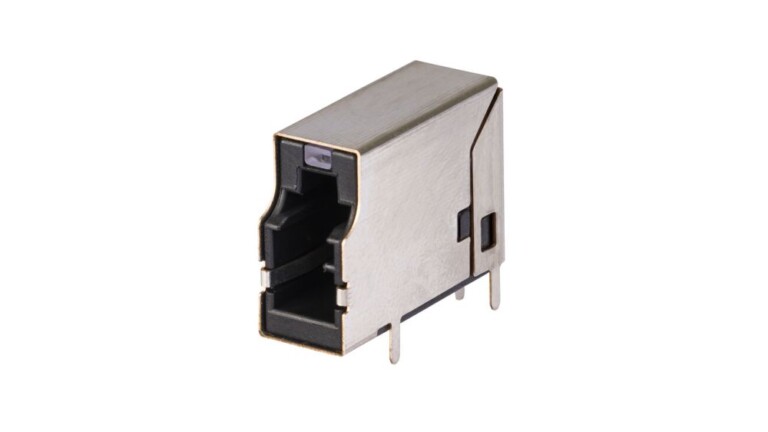

SPE Jack, IEC 63171-1, Class T1-B, 1 Port, shielded, PCB, MICE 1 (R836544)

The R&M Single Pair Ethernet Simplex PCB Jack is used as fixed connecting hardware for Printing Circuit Boards (PCB). No light guide.

SKU: R836544 Categories: Home, Single Pair Ethernet (SPE), SPE Connectors, Twisted Pair Cabling

Environmental Characteristics

Operation temperature	-20 °C to +60 °C / -4 °F to +140 °F
Storage / Transport temperature	-0 °C to +50 °C / +32 °F to +122 °F

Mechanical Data

Dimensions	7 mm x 13.85 mm x 21.2 mm / 0.276 in x 0.545 in x 0.835 in (W x H x D)
Color	metallic / anthracite / beige / blue

Technical Data

Category connector (A)	T1-A
Connector type (A)	IEC 63171-1 / LC-Cu
Shielding connector (A)	shielded
PoE	Yes
Connector class	duplex SPE connection module
Poles	2x 2
UL Classification	UL94-V0
Standard	ISO/IEC 11801-1 ad1 ISO/IEC 11801-6 ad1 IEC 63171 IEC 63171-1 IEEE 802.3cg IEEE 802.3bu
