Stranded loose tube, double sheathed cable, iRP-increased rodent protected, outdoor-use, UV.HDPE sheath - black, Fca, 12 x 12f = 144 fibers G657A1 (R885319)
Stranded loose tube, non-metallic cable with up to 144 fibers in a 12-strand stranding featuring double PE sheath and a high degree of rodent protection. The cable is designed for installations in outdoor ductsystems but is also well suited for direct burial.
| Temperature cycling |
-40 °C +70 °C / -40 °F +158 °F |
| Temperature cycling acceptance criteria |
Δα ≤ 0,05 dB |
| Temperature cycling test method |
IEC 60794-1-22:F1 |
| Operation temperature |
-40 °C to +70 °C / -40 °F to +158 °F |
| Storage / Transport temperature |
-40 °C to +70 °C / -40 °F to +158 °F |
| Water penetration |
L = 3 m, h = 1 m, 24 h |
| Water penetration acceptance criteria |
no water leakage under inner sheath |
| Water penetration test method |
IEC 60794-1-22:F5B |
| Thermal load |
4.93 MJ/m |
| 2015 / 863 / EU - RoHS 3 |
compliant |
| In-service tensile strength |
2000 N |
| In-service tensile strength acceptance criteria |
Δα ≤ 0,05 dB |
| In-service tensile strength test method |
IEC 60794-1-21:E1 |
| Installation tensile strength |
5000 N |
| Installation tensile strength acceptance criteria |
Δα ≤ 0,05 dB after test |
| Installation tensile strength test method |
IEC 60794-1-21:E1 |
| Crush resistance long term |
1500 N/100mm |
| Long-term crush resistance acceptance criteria |
Δα ≤ 0,05 dB prior release, no damage |
| Long-term crush resistance test method |
IEC 60794-1-21:E3A |
| Short-term crush resistance |
3000 N/100mm |
| Short-term crush resistance acceptance criteria |
Δα ≤ 0,05 dB after release, no damage |
| Short-term crush resistance test method |
IEC 60794-1-21:E3A |
| Impact resistance |
10 Nm, 3 impacts, d=20 mm, R=300 mm |
| Impact resistance acceptance criteria |
Δα ≤ 0,05 dB after test, no damage |
| Impact resistance test method |
IEC 60794-1-21:E4 |
| Torsion |
L = 1 m, rotation angle ±180°, 10 cycles |
| Torsion acceptance criteria |
no damage |
| Torsion test method |
IEC 60794-1-21:E7 |
| Repeated bending |
R=20 x cable diameter, 25 cycles |
| Repeated bending acceptance criteria |
no damage |
| Repeated bending test method |
IEC 60794-1-21:E6 |
| Cable bend |
R=15 x cable diameter, 4 turns, 3 cycles |
| Cable bend acceptance criteria |
Δα ≤ 0,05 dB after test, no damage |
| Cable bend test method |
IEC 60794-1-21:E11A |
| Minimum bend radius in service |
230 mm |
| Minimum bend radius during installation |
310 mm |
| Cable family code |
OT3x1,7LGH |
| Cable type |
Stranded loose tube cable |
| Cable version |
Multi loose tube (Ø 1.7 mm) - 12f/tube |

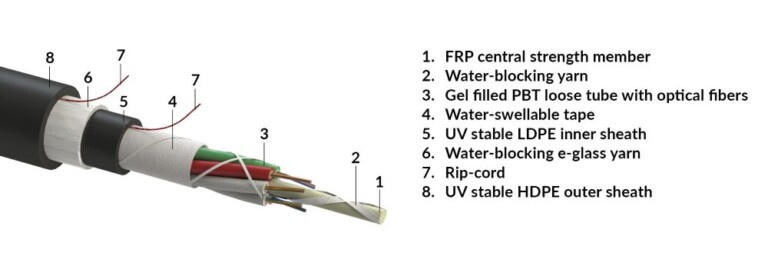

| Cable design |
Double jacket |
| Cable application |
outdoor use |
| DoP number |
D9941 |
| Fiber type |
G.657.A1 |
| Fiber count |
144 |
| Fiber color coding |
1.-12.: red, green, blue, yellow, white, grey, brown, violet, turquoise, black, orange, pink |
| Fiber count per tube |
12 |
| Loose tube count |
12 |
| Loose tube diameter |
1,7 mm |
| FRP/coat. CSM nominal thickness [mm] |
2.5/5.0 |
| Inner sheath thickness |
1 mm |
| Armor |
Intensified rodent protection |
| Outer sheath thickness |
1,4 mm |
| Outer sheath material |
UV stable HDPE |
| Outer sheath color |
black |
| Sheath marking |
Ink-Jet, white |
| Cable outer diameter |
15,3 mm |
| Cable weight |
180.0 kg/km / 121 lbs/1000ft |
| DIN / VDE 0888 code |
A-DQ2Y(BN)2Y wbg nx1,7 |
| Expected lifetime |
min. 30 years |
| Fiber diameter |
E09 / 125 µm |
| CPR classification |
Fca |
