Name: Wall mounting box-IP54-130x130x75-2x32mm (R873773) - Synge Inc.
SKU: R873773
Price: 189.42 CAD
Availability: InStock

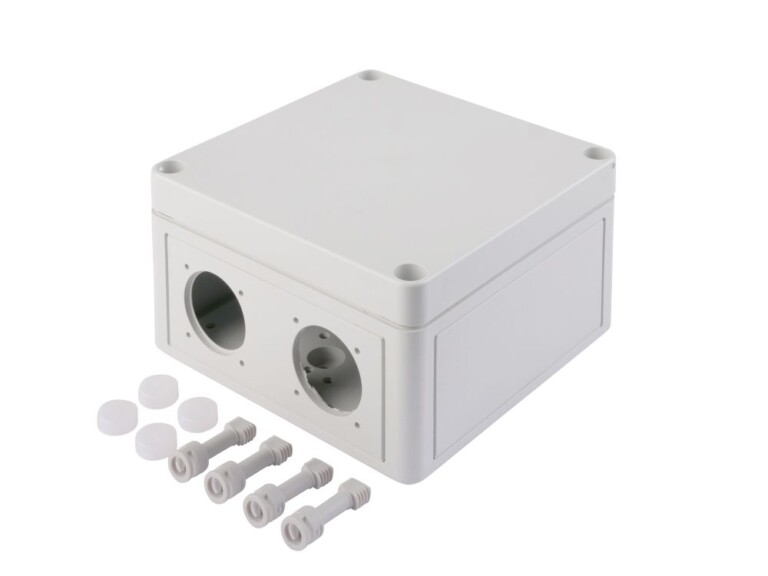

Wall mounting box-IP54-130x130x75-2x32mm (R873773)

The housing has been prepared for mounting the mounting frame, which achievesprotection class IP54

The cable entry is prepared to accept the M20 cable gland.(20.5mm)

Environmental Characteristics

Operation temperature

-35 °C to +60 °C / -31 °F to +140 °F

Mechanical Data

Dimensions	130.0 mm x 130.0 mm x 75.0 mm / 5.118 in x 5.118 in x 2.953 in (W x H x D)
Color	7035 Light gray
Material	plastic: PA66, fiber-glass-reinforced

Technical Data

Protection class IP	IP 54 (correlates to NEMA 3S) IP 54 (correlates to NEMA 3S)
Outlet type	surface-mounting (SM)&(FM)
Capacity (ports)	2
Standard	Impact strength: IK08 acc. to EN 50102
