WM Hybrid Outlet, 2/1xLC-Duplex APC, green, G657A red, ceramic, C (R509492)

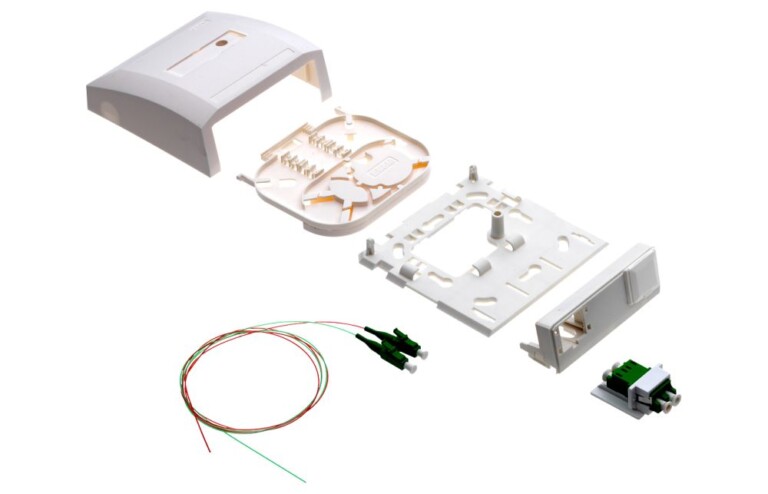

Ready for splicing with LC-Duplex adapter (with integrated self-closing metallaser protection flaps), 1 LC pigtail included. Splice tray with splice holder and strain relief for 600 µm fibers. Combined through universal adapter with SC, BNC, Chinch and F-Coax. Adapter SC-RJ and connection modul RJ45/u with mounting plate.

Color: pure white (RAL 9010).

Dimensions: 88 x 88 x 15/33 mm.

SKU: R509492 Categories: , , ,
Mechanical Data

Dimensions

88.0 mm x 88.0 mm x 33.0 mm / 3.465 in x 3.465 in x 1.299 in (W x H x D)
Color Code RAL

9010 Pure white
Material

plastic: PC + ABS
Technical Data

Fiber type

Singlemode (SM)
Number of connectors (A)

1
Connector type (A)

LC-Duplex
Connector color (A)

green
Polishing plug (A)

APC 8°
Protection class IP (A)

IP 20
Protection class IP

IP 20
Application area

surface-mounting (SM)&(FM)
Adapter fastening method

end cap snap-in
Assembly

partly populated
Outlet type

outlet
Holder for connector / module

Module holder
Sleeve material

ceramic
Version

splice

Installation instructions

 Download
