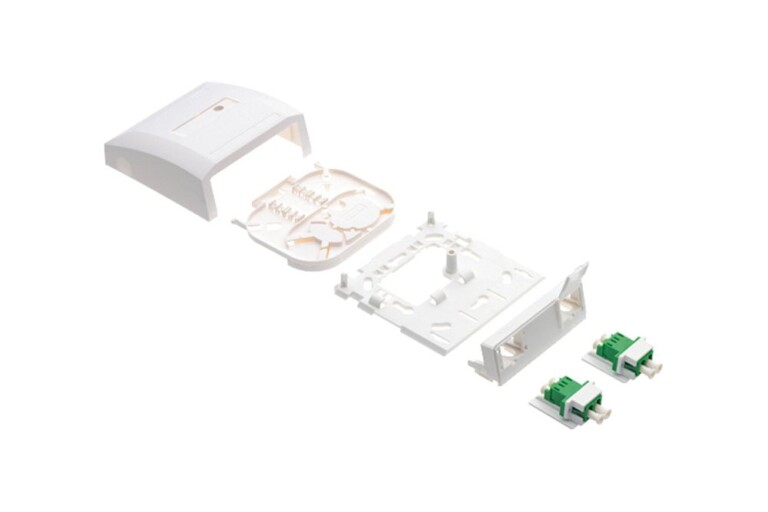

WM Hybrid Outlet, 2/2xLC-Duplex APC, green, ceramic (R505976)

Repared for breakout or splicing with LC-Duplex adapter (without laser protection flaps). Splice tray with splice holder and strain relief for 600 µm fibers.

Color: pure white (RAL 9010).

Dimensions: 88 x 88 x 15/33 mm.

SKU: R505976 Categories: , , ,
Mechanical Data

Dimensions

88.0 mm x 88.0 mm x 33.0 mm / 3.465 in x 3.465 in x 1.299 in (W x H x D)
Color Code RAL

9010 Pure white
Material

plastic: PC + ABS
Technical Data

Fiber type

Singlemode (SM)
Number of connectors (A)

2
Connector type (A)

LC-Duplex
Connector color (A)

green
Polishing plug (A)

APC 8°
Protection class IP (A)

IP 20
Protection class IP

IP 20
Attenuation grade IL (A)

C
Application area

surface-mounting (SM)&(FM)
Adapter fastening method

end cap snap-in
Assembly

partly populated
Outlet type

outlet
Holder for connector / module

Module holder
Sleeve material

ceramic
Version

splice

Installation instructions

 Download
